Robotic Arm
UNIT://Z1
CONFIGS: 8 LIVE ZAR PRICING

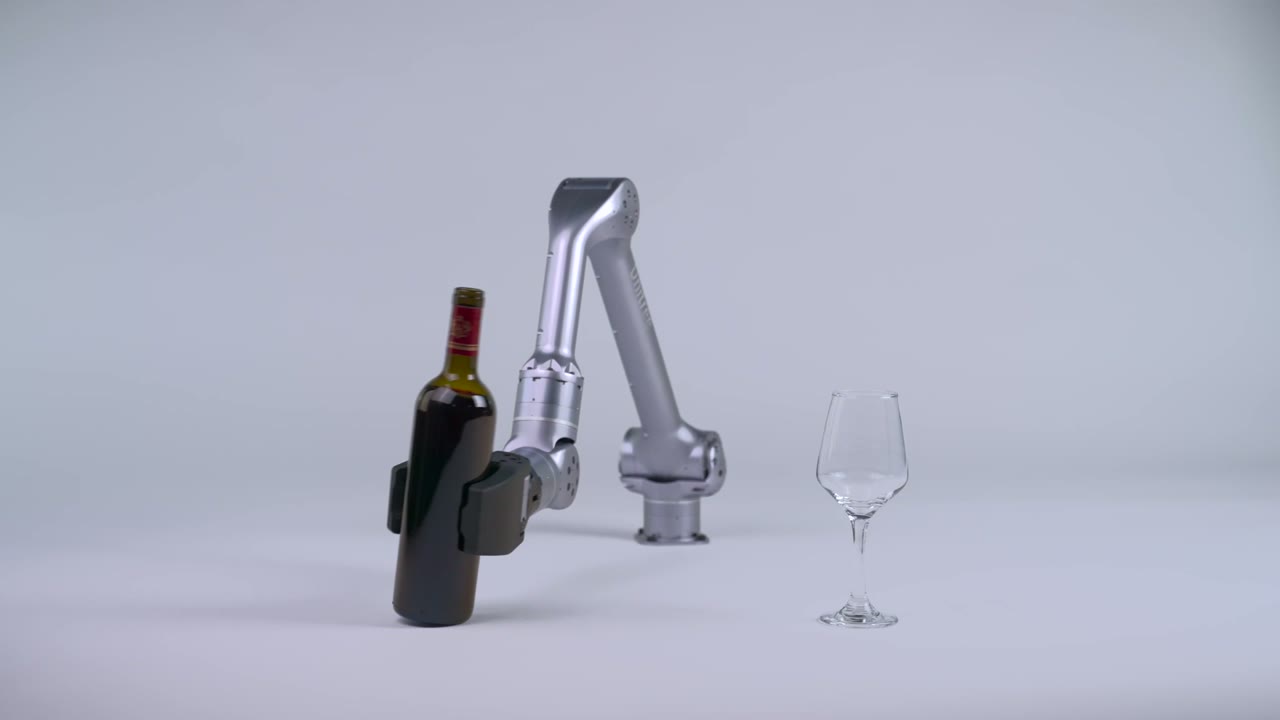

Z1 .
6-DOF precision arm for mobile manipulation, research and automation.
from R 115,500EX VAT
8 configurations Warranty 12 months
Research-grade machinery for trained adult operators, not a toy. Read the Product Safety Notice before you order.
Z1 — Key figures
FACTORY DATA
Degrees of Freedom
6
Repeatability
~0.1 mm
Weight
4–5 kg
Control
Position & force
Payload
2 kg
Collision detection
Sensitive collision detection

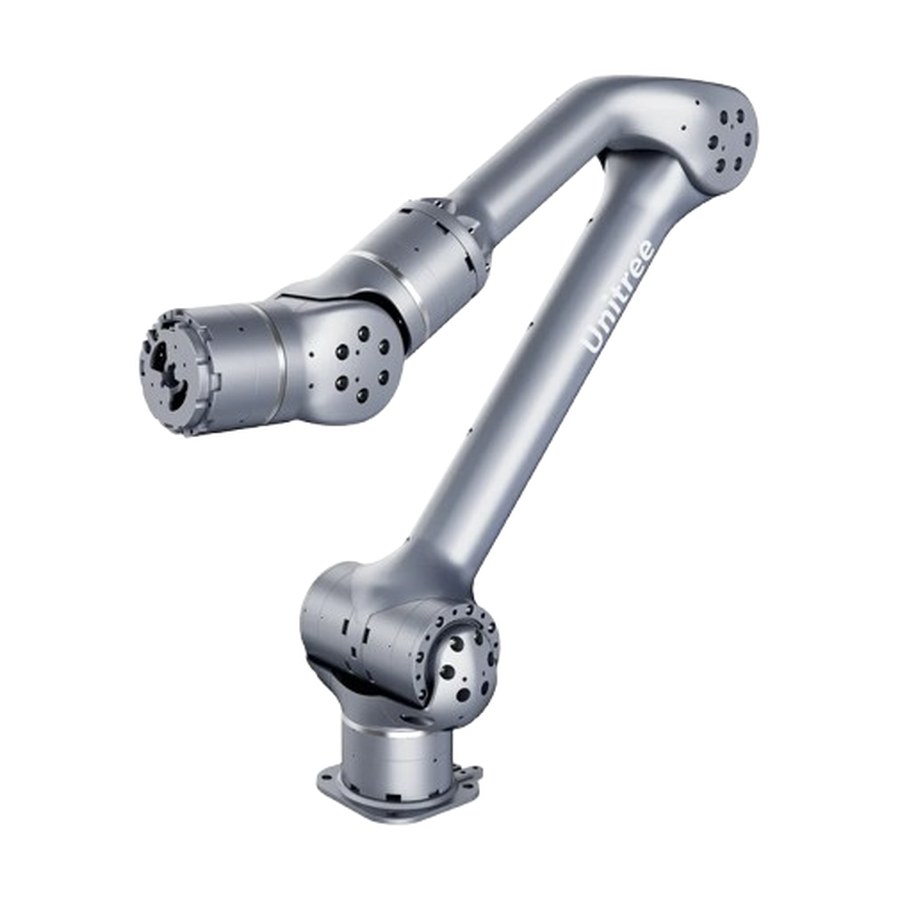

Harmonic-drive precision.
±0.1 mm Repeatability
Six harmonic-drive joints give the Z1 industrial-grade repeatability of about ±0.1 mm across a 740 mm reach — precise enough for grasping and insertion research, visual servoing, light assembly and repeatable sample handling. Its published kinematics and URDF models support calibration work and reproducible experiments.
Performance
Key Specifications
6
Degrees of Freedom
±0.1 mm
Repeatability
740 mm
Reach
2–3 kg
Payload
~4.3 kg
Weight
3 options
Grippers
Z1 Parameters
● included ○ not included ◕ optional
Every build, side by side.
Pick up to 4 to compare
| Specification | Z1 Air (no gripper) ★ | Z1 Pro (no gripper) | Z1 Air (with gripper) | Z1 Air (with D435i gripper) | Z1 Air (with D405 gripper) | Z1 Pro (with gripper) | Z1 Pro (with D435i gripper) | Z1 Pro (with D405 gripper) |
|---|---|---|---|---|---|---|---|---|
| Specifications | ||||||||
| Degrees of Freedom | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Repeatability | ~0.1 mm | ~0.1 mm | ~0.1 mm | ~0.1 mm | ~0.1 mm | ~0.1 mm | ~0.1 mm | ~0.1 mm |
| Weight | 4–5 kg | 4–5 kg | 4–5 kg | 4–5 kg | 4–5 kg | 4–5 kg | 4–5 kg | 4–5 kg |
| Control | Position & force | Position & force | Position & force | Position & force | Position & force | Position & force | Position & force | Position & force |
| Payload | 2 kg | 3 kg | 2 kg | 2 kg | 2 kg | 3 kg | 3 kg | 3 kg |
| Collision detection | Sensitive collision detection | Yes | Sensitive collision detection | Sensitive collision detection | Sensitive collision detection | Sensitive collision detection | Sensitive collision detection | Sensitive collision detection |
| Gripper | None, arm only | None, arm only | Gripper | D435i gripper | D405 gripper | Gripper | D435i gripper | D405 gripper |
| Warranty | 12 months | 12 months | 12 months | 12 months | 12 months | 12 months | 12 months | 12 months |
| Price ex VAT | R 115,500 | R 148,750 | R 141,750 | R 159,250 | R 159,250 | R 175,000 | R 192,500 | R 192,500 |
Z1 Air (no gripper) ★ R 115,500
Specifications
Degrees of Freedom
6
Repeatability
~0.1 mm
Weight
4–5 kg
Control
Position & force
Payload
2 kg
Collision detection
Sensitive collision detection
Gripper
None, arm only
Warranty12 months
Configure this build
Z1 Pro (no gripper) R 148,750
Specifications
Degrees of Freedom
6
Repeatability
~0.1 mm
Weight
4–5 kg
Control
Position & force
Payload
3 kg
Collision detection
Yes
Gripper
None, arm only
Warranty12 months
Configure this build
Z1 Air (with gripper) R 141,750
Specifications
Degrees of Freedom
6
Repeatability
~0.1 mm
Weight
4–5 kg
Control
Position & force
Payload
2 kg
Collision detection
Sensitive collision detection
Gripper
Gripper
Warranty12 months
Configure this build
Z1 Air (with D435i gripper) R 159,250
Specifications
Degrees of Freedom
6
Repeatability
~0.1 mm
Weight
4–5 kg
Control
Position & force
Payload
2 kg
Collision detection
Sensitive collision detection
Gripper
D435i gripper
Warranty12 months
Configure this build
Z1 Air (with D405 gripper) R 159,250
Specifications
Degrees of Freedom
6
Repeatability
~0.1 mm
Weight
4–5 kg
Control
Position & force
Payload
2 kg
Collision detection
Sensitive collision detection
Gripper
D405 gripper
Warranty12 months
Configure this build
Z1 Pro (with gripper) R 175,000
Specifications
Degrees of Freedom
6
Repeatability
~0.1 mm
Weight
4–5 kg
Control
Position & force
Payload
3 kg
Collision detection
Sensitive collision detection
Gripper
Gripper
Warranty12 months
Configure this build
Z1 Pro (with D435i gripper) R 192,500
Specifications
Degrees of Freedom
6
Repeatability
~0.1 mm
Weight
4–5 kg
Control
Position & force
Payload
3 kg
Collision detection
Sensitive collision detection
Gripper
D435i gripper
Warranty12 months
Configure this build
Z1 Pro (with D405 gripper) R 192,500
Specifications
Degrees of Freedom
6
Repeatability
~0.1 mm
Weight
4–5 kg
Control
Position & force
Payload
3 kg
Collision detection
Sensitive collision detection
Gripper
D405 gripper
Warranty12 months
Configure this build
Specifications follow Unitree factory data and may change with firmware and hardware revisions. Rand prices track our live USD exchange rate and exclude VAT, airfreight, customs and delivery, itemised at checkout. ★ default configuration.
Configure & Order
Build your Z1.
1 — Configuration
2 — Add accessories
TIP: we recommend a second battery with every robot, so one pack charges while the other works.
Questions
Z1 in South Africa — the practical answers.
Pricing starts at R 115,500 ex VAT across 8 configurations. Prices are calculated from Unitree's USD list price at our current exchange rate, so you always see a live Rand price with no hidden markup.
We handle airfreight from the factory, customs clearance and insured local delivery to anywhere in South Africa. These landed costs are itemised on your order before you pay. Typical lead time is 4 to 6 weeks from payment confirmation.
Yes — 12 months depending on configuration, backed by Unitree and handled locally by MCM Robotics as the official South African distributor. Repairs, genuine parts and firmware support run through us.
Add your build to the cart and request a quote: a PDF quotation with our FNB banking details arrives by email within a minute. Orders confirm on EFT receipt, and we support institutional and tender paperwork.
EDU and developer configurations expose Unitree's full SDK: low-level joint control, perception streams and simulation environments (ROS2, Isaac Sim, MuJoCo). See the Education page for curriculum support and tier guidance.
